SHANGHAI NITZ VALVE CO.,LTD TEL:86-21-59180665

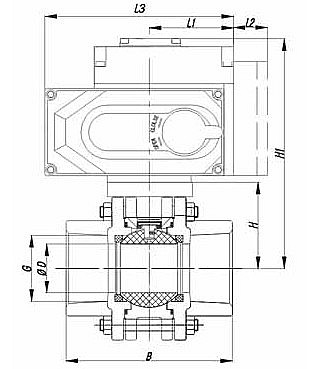

3PC Screwed Electric Actuated Bronze Ball Valve(with mounting flanged)
STANDARD:
Design: ANSI B 16.34
Flange Size: ANSI B 16.5
Face to Face :ANSI B 16.10
Testing:API 598
APPLICATION:
For general chemical and industrial services
Related pneumatic and electric unit an be installed
Working Pressure: ANSI 150LB
Applicable Medium: Water, Oil and Gas
Body Material: Bronze C83600 C95800
Features:
1.Easy to disassemble,install and matain,optional installation position.
2.Small-sized,portable,compact configuration ,gyration90.
3.Small operation torque enhances flexibility and facilitates prompt turn on.
4.Manual operation is available.
5.A long service life with over severral hundred thousands start/close tests.
