Marine Bronze Globe Valves GB/T587-93
Specification:
1.Pressure Rating: 0.6Mpa-2.5Mpa
2.Application: sea water, oil, air,liquefied gas,steam etc
3.Temperature Range : water below 120 ℃, oil ,gas ,steam below 220 ℃。
4.Flange connection Std: GB/T587-93
Materials of Major Parts:
Part name |
Material |
Name |
Mark |
Body、Cover |
Bronze |
C95800 |
Disc、Seat |
Bronze |
C95300 |
Packing |
PTEF |
SFT-2 |
How to order:CODE, Globe valve(GB/T583-97),Bronze ,Pressure rating,Size DN

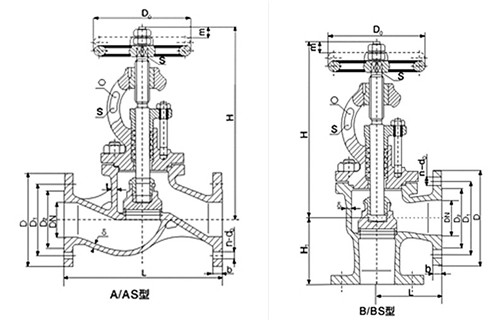

DN |
SIZE |
L |
H |
D |
D1 |
D0 |
b |
n-d |
15 |
1/2 |
110 |
130 |
95 |
70 |
80 |
12 |
4-15 |
20 |
3/4 |
120 |
140 |
100 |
75 |
100 |
14 |
4-15 |
25 |
1 |
130 |
160 |
125 |
90 |
125 |
14 |
4-19 |
32 |
1 1/4 |
160 |
170 |
135 |
100 |
125 |
16 |
4-19 |
40 |
1 1/2 |
180 |
190 |
140 |
105 |
140 |
16 |
4-19 |
