Gate Valve.Class 200 .Threaded Bonnet. Rising Stem .Thread Ends

Gate Valve.Class 150 .Threaded Bonnet. Non-Rising Stem .Thread Ends

SHANGHAI NITZ VALVE CO.,LTD   TEL :021-59180665


Gate Valve.Class 200.Threaded Bonnet. Non-Rising Stem .Thread Ends

STANDARD:MSS SP-80

CLASS200 ASTM B62 C83600

1.Technical specification: Threaded Bonnet,Rising Stem

Nominal Pressure: CLASS 125 CLASS 150,CLASS 300,CLASS400,CALSS800
Nominal Diameter:DN15-DN100

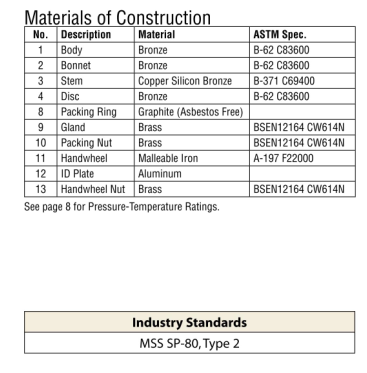

Material:ASTM B61 C92200,ASTM B62 C83600,ASTMB 148 C95800,ASTM B140 C95500


 2.Suitable Medium:Fresh water,Sea water,Oil fuel and t≤120℃ steam.

3. Seat and packing:PTFE and FPM


 4.Connection dimension:Threaded G、BSP and NPT.

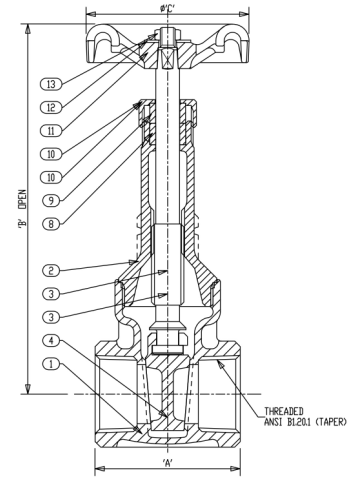

 Main external and connection dimension:
