Gate Valve.Class 150 .Threaded Bonnet. Non-Rising Stem .Thread Ends

Gate Valve.Class 150 .Threaded Bonnet. Non-Rising Stem .Thread Ends


GATE VALVES CLASS150 ASTM B61 C92200
Technical specification: Threaded Bonnet,Non-Rising Stem

Nominal Pressure: CLASS 125 CLASS 150,CLASS 300,CLASS400,CALSS800

Nominal Diameter:DN15-DN100

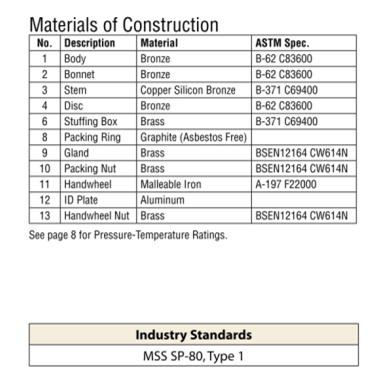

Material:ASTM B61 C92200,ASTM B62 C83600,ASTMB 148 C95800,ASTM B140 C95500

 Suitable Medium:Fresh water,Sea water,Oil fuel and t≤120℃ steam.

 Seat and packing:PTFE and FPM

 Connection dimension:Threaded G、BSP and NPT.

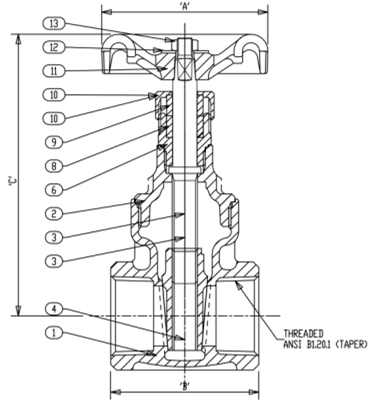

Main external and connection dimension:
