Marine Cast Steel Flanged Check Valves GB/T 586-1999

Marine Cast Steel Flanged Check Valves   TEL:86-21-59180665


Marine Cast Steel Flanged Check Valves GB/T 586-1999

Technical Data

Nominal Pressure (MPa)

Nominal Diameter (mm)

Applicable Medium



1.0



65-125





Sea water,Fresh water

Fuel oil and steam (t220)

1.6

20-125

2.5

20-100



 Material of main parts

 name

 material

Marks



body \cover

Cast Steel

ZG230-45

disc

Carbon Steel

Steel 25#

 seal ring



Weld Stainless Steel

H2Cr13

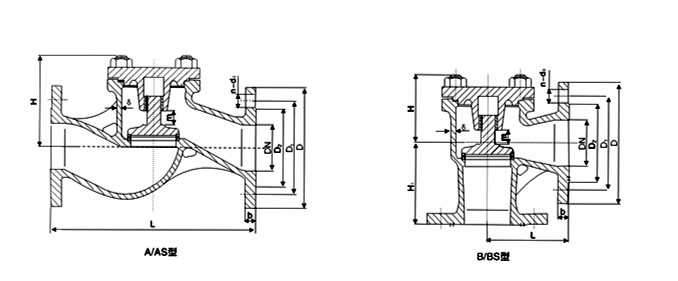

Type: A\AS, B\BS
