Flanged Cast Iron Globe Valve GB/T590-1993

Marine Cast Iron Globe Valve    TEL:86-21-59180665


Flanged Cast Iron Globe Valve  GB/T590-1993

Flanged Cast Iron Screw down non-return valve

Technical Data

Nominal Pressure (MPa)

Nominal Diameter (mm)

Applicable Medium



0.6



50-300





Sea water,Fresh water

Fuel oil and steam (t220)

1.0

65-250

1.6

20-50



  Material of main parts

 name

 material

Marks



body \cover

Cast Iron

HT200

disc

 Cast Tin Bronze

ZCuSn10Zn2

steml

Aluminum

CuA19Mn2

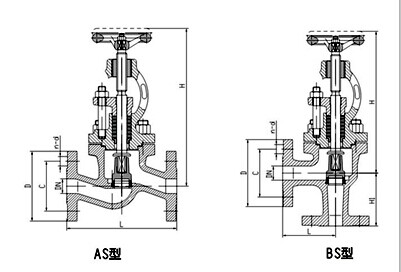

 Type:A 、AS,B、BS
